SK220 track roller Kobelco SK220 track roller 24100J2446 [LOOK:709] [NO.:1]

TYPE : track roller TIME : 2016-7-18 16:01:28

TEL : 86-13959206416

Send Enquiry

Detailed description

1: Product Specification

Product name: SK220 Kobelco excavator track roller

Part number: 24100J12446F1

Surface hardness: HRC55-62

Warranty time: 2000 hours

Track Link	35MnB;, HRC50° — 55°
Pin&Bushing	40MnB, HRC55° — 62°
Track Shoe	25MnB, HRC42° — 49°
Idler	40Mn, HRC55° — 62°
Track Roller	50Mn, HRC55° — 62°
Carrier Roller	50Mn, HRC55° — 62°
Segments	40Mn, HRC45° — 55°

2: Our advantage:

Undercarriage is adopting through hardening system and spraying quenching system while complying with the stringent ISO System. We are able to assure the part has excellent wear resistance even in the most severe working conditions.

We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.

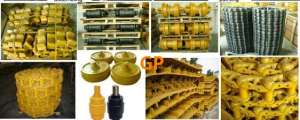

3: Photos:
